[Making Intelligence] Obstacle One + Two // Stamp

---

Project Brief

"Design a personal identity mark."

Tools and Materials Used

Rhinoceros
Laser cutter
Rubber
Wood - Cherry, Brazilian Walnut

---

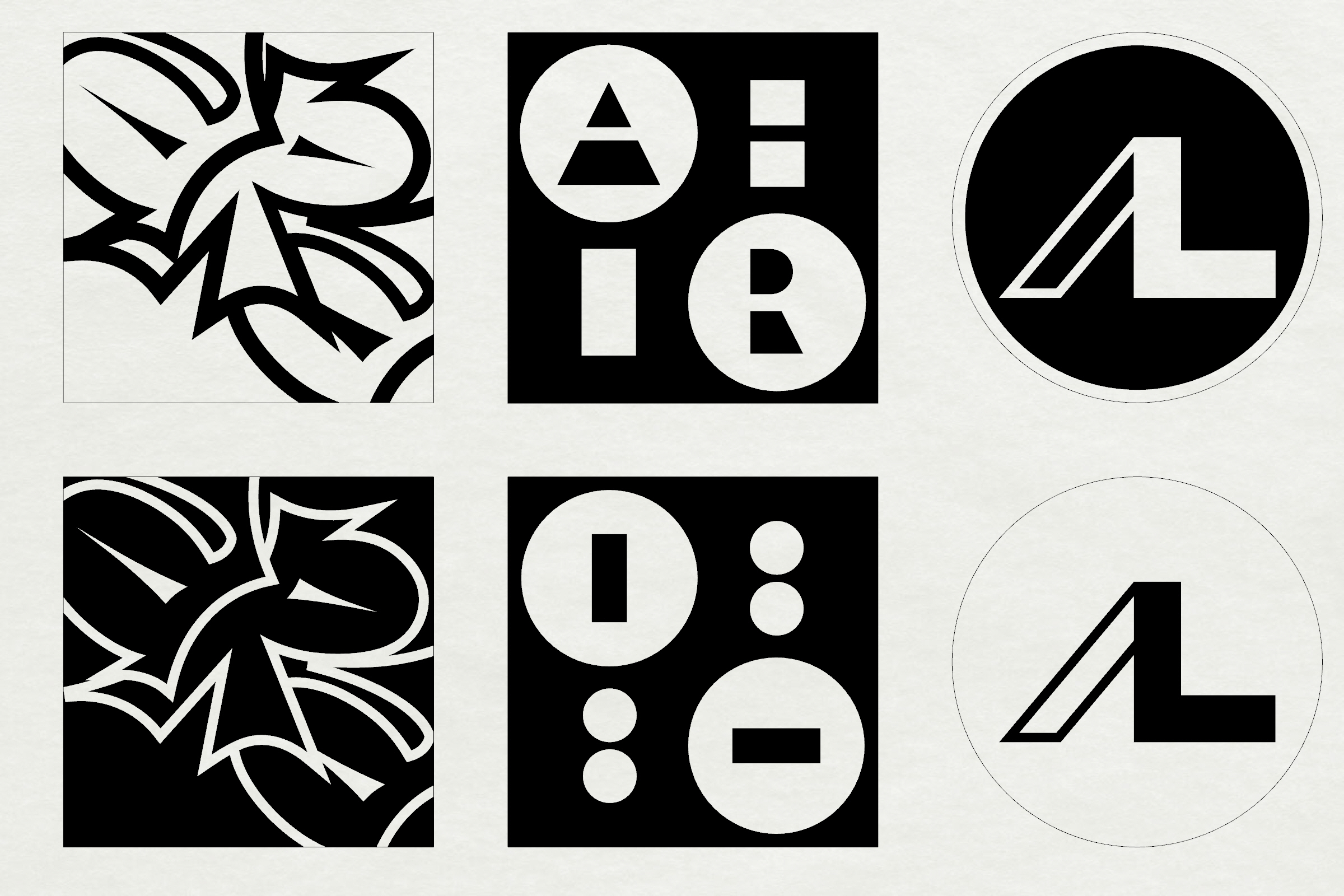

1) Logo Designs

Although there was encouragement to go beyond using our names as driving factors for the logo designs, I wanted the stamp design to be general and formal for other possible uses beyond this class. I explored different ways of representing my name, and I first started with a more creative and free-thinking approach, inspired by graffiti tags. The next two utilize all the unique letters in my name: A, R, L, and E. The bottom center logo is the abstracted version. The last two are my initials, and are the logos that I had originally designed a few years back for my portfolio website. I lean towards these two as they are clean, simple, and generic.

---

2) Fabrication

I spent a significant time figuring out the best laser cut setting for cutting and engraving on the rubber. I did multiple tests to see how certain settings would affect the result. I started out with a recommended setting I found online, and made changes accordingly to deepen the engraving or to limit the burning of the cut.

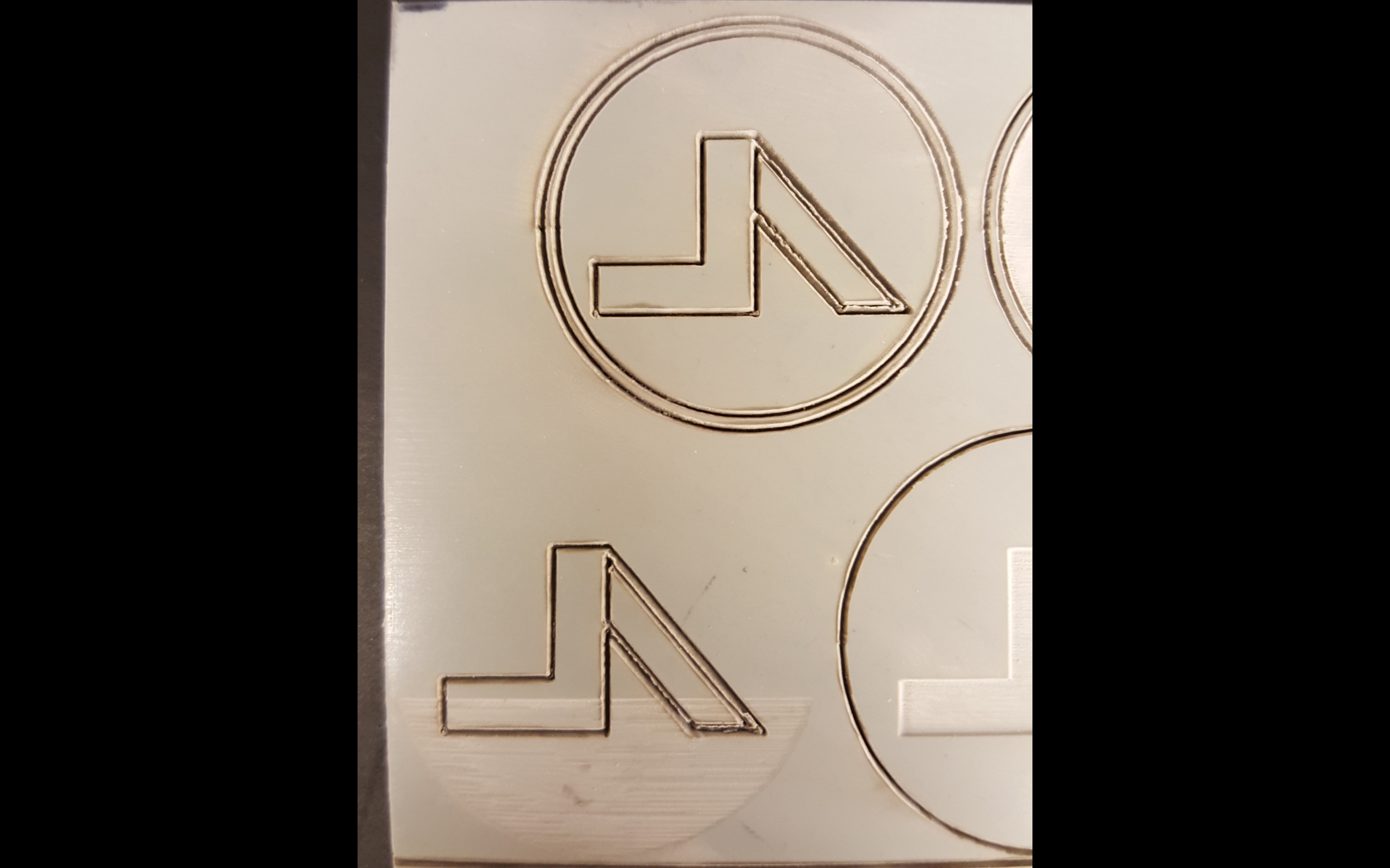

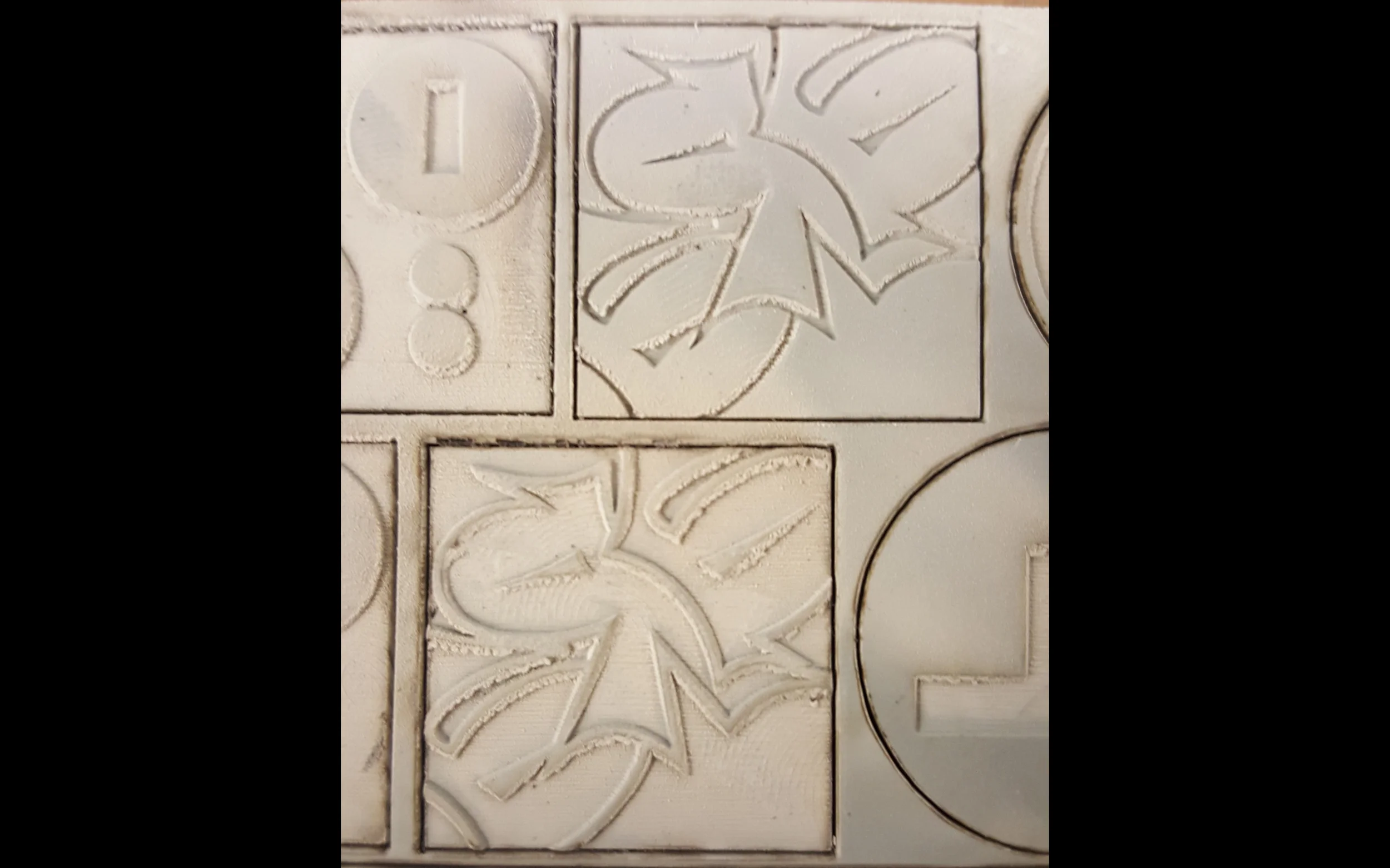

First Tests

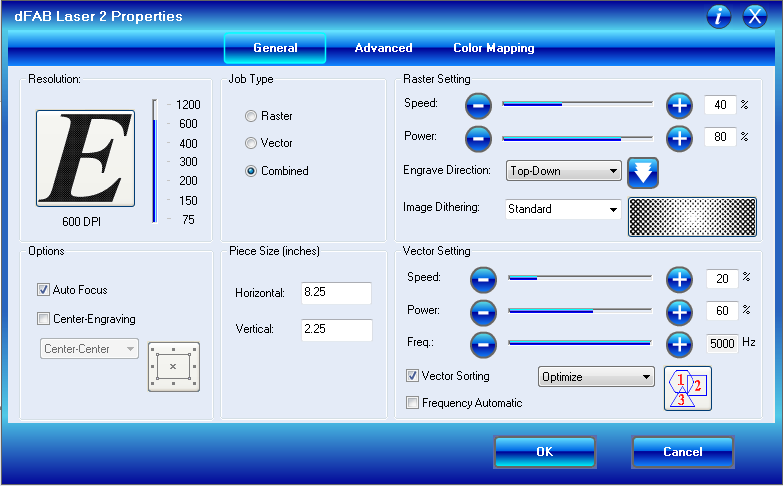

Final Setting

---

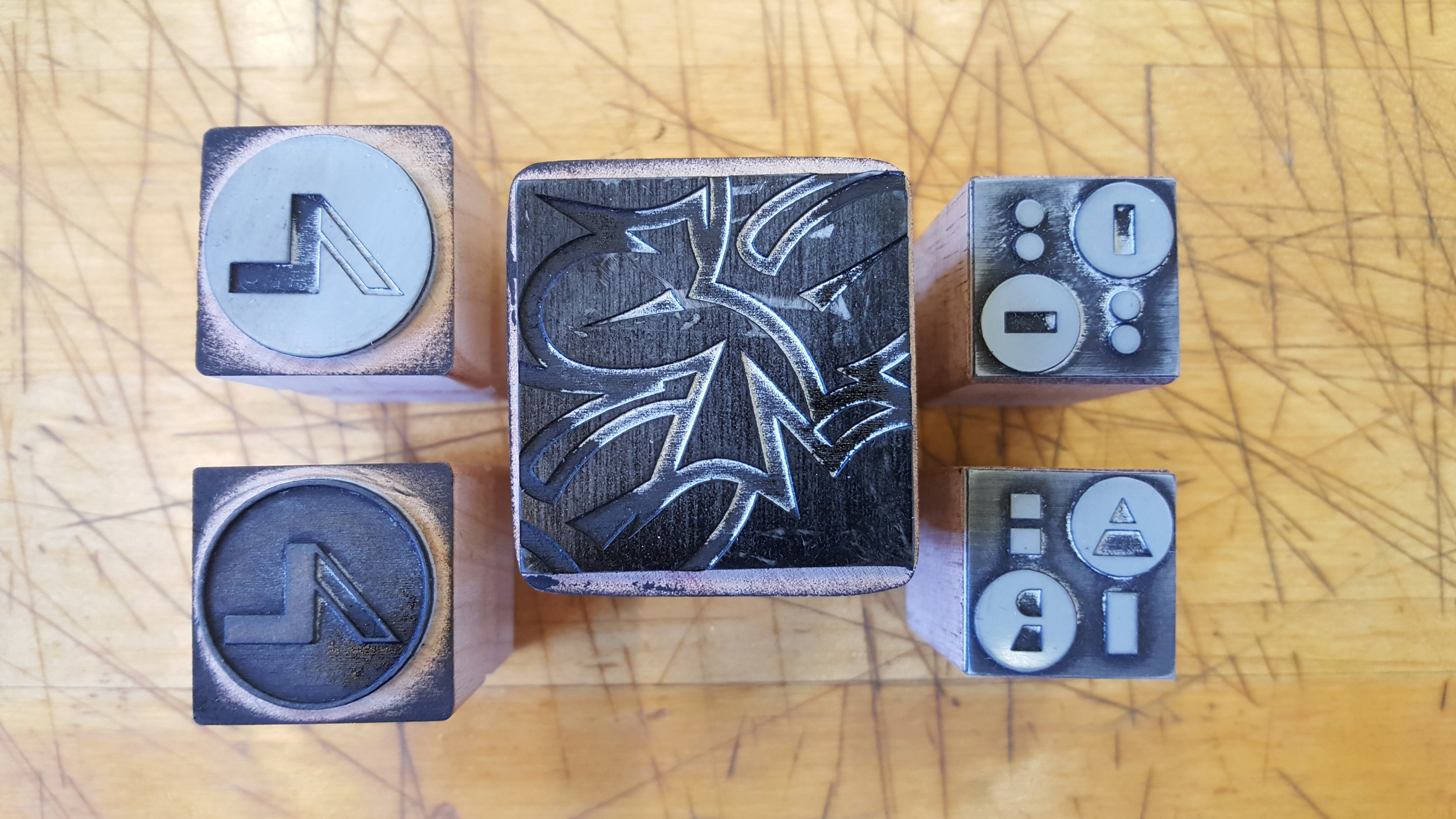

Final Product

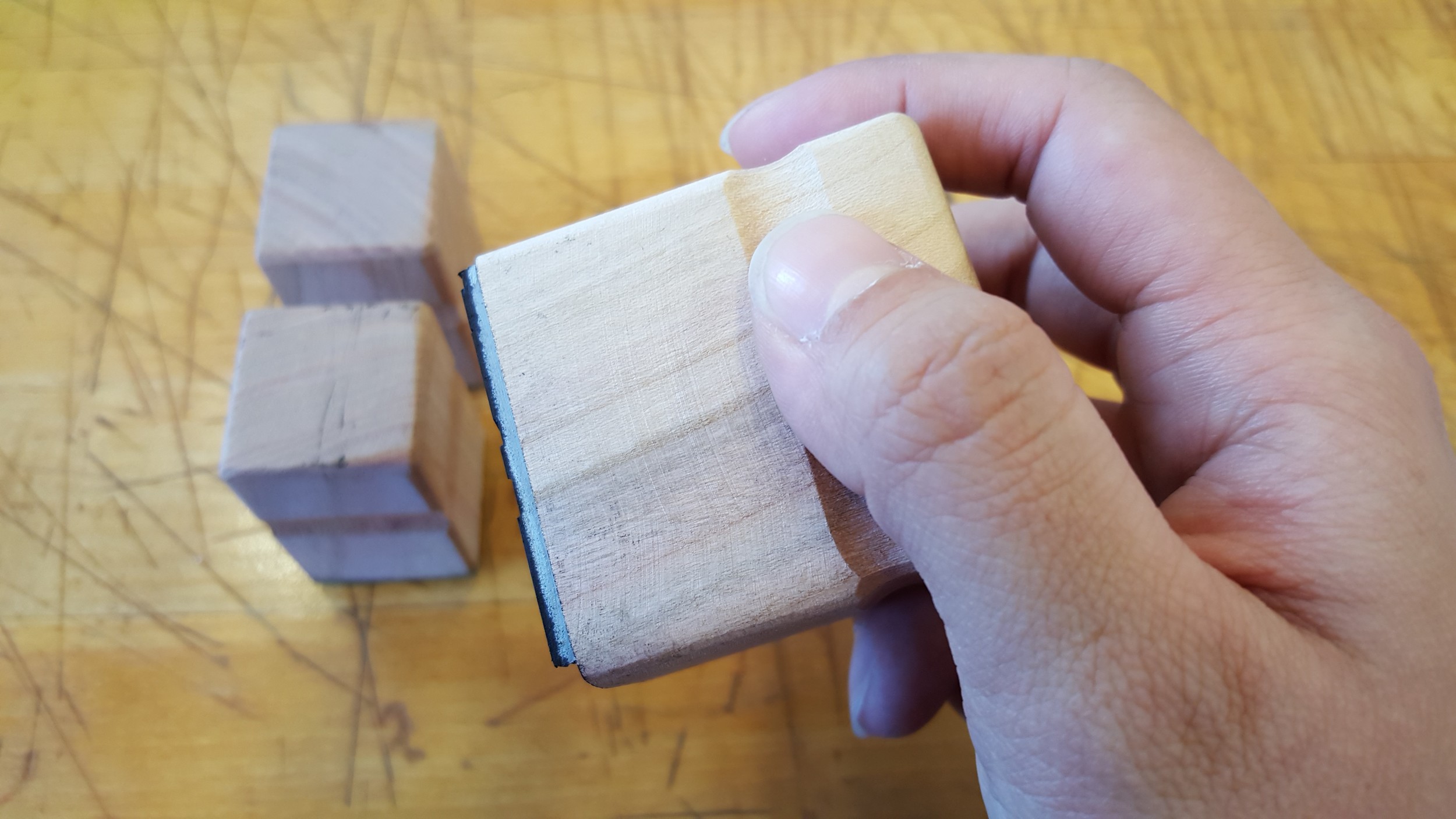

The stamp handles were made in wood shop, and the grooves were made on the oscillating spindle sander.
